electric hoist

FOB Reference Price:Get Latest Price
50 Set/Sets Please Contact TAIWAN WINCH CO. (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan
Brand Name:
TAIWAN WINCH CO.
Model Number:
MR-2085-28A50
Power Source:
Electric
Application:
Longer Rope Compact Winch
Capacity:
85kg
Control:
use contactor
Packaging & Delivery
Packaging Details
by TAIWAN WINCH CO. Standard Exportation Packing
Delivery Time
30 Days Upon Order Confirmation

electric hoist

Features:

  • Light weight & compact design allows mounting convenient.
  • When rope touches the limit arm, hoisting is automatically stopped.
  • A sensor arm stops the motor when the rope is reverse winding.
  • Dynamic brake designs for both static and dynamic loading.
  • Separated quick connection for convenience.
  • 360° universal joint saddle hook with safety latch
  •  Equipped with magnetic contactor to avoid voltage drop, while ensuring powerful lifting.

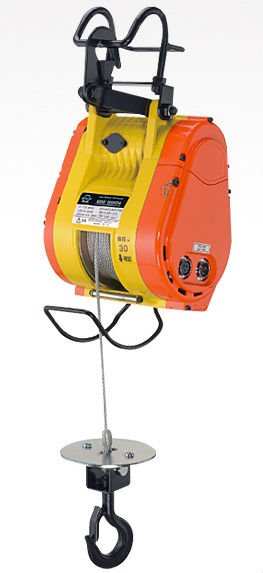

85kg 28M/min Mini Hoist

Model : MR-2085-28A50

Rated Lifting capacity : 85kg

Speed : 28M/min

Power consumption :  1000W

Power source(Single phase) : 1PH 220V, 50/60Hz

Rated power source : 5A

Rated reciprocation : 25% ED, 150 time/hour

Packing (LxWxH) : 448X245X325mm

N.W. (kg) : 19.0kg

G.W. (kg) : 20.0kg

Steel rope : Ø3mmx50M

Weight hook : MH-100

Power Wire : 5M

Operational cable : 10M

Control switch : 2-buttom switch

Design and specifications are subject to change without prior notice.
Voltage:1PH 110V avaiable
